IO-032

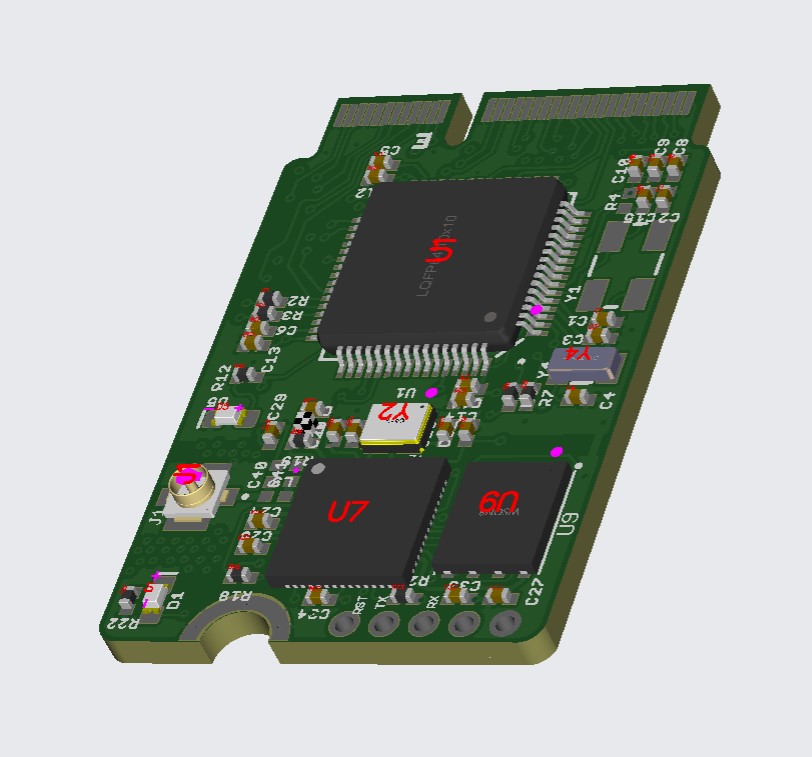

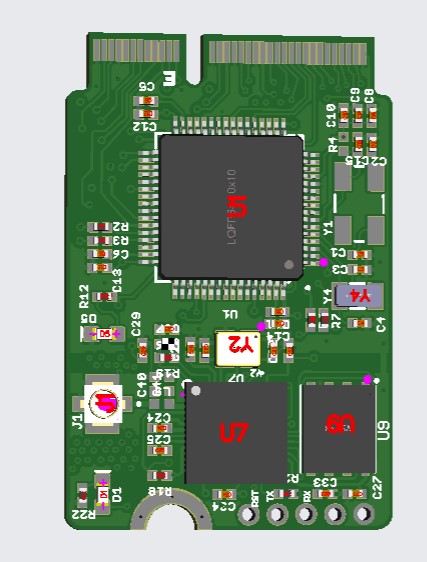

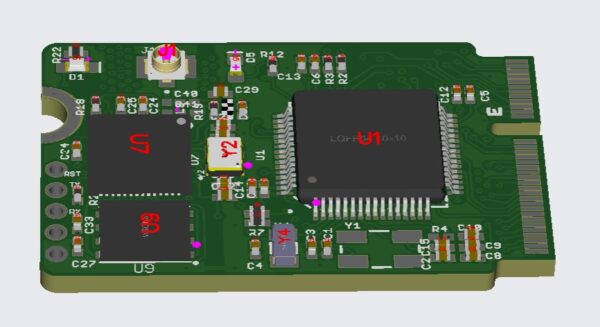

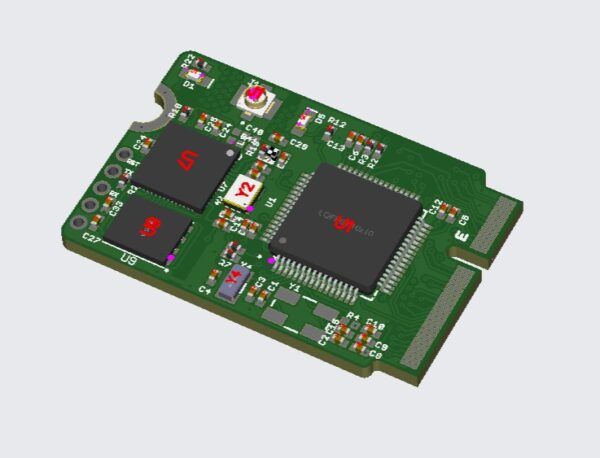

Supercharge Your Next Project with STM32F4 and ESP32 Integration

It’s time to elevate your next project with the powerful combination of the STM32F4 microcontroller and the ESP32 Wi-Fi module, integrated into a single chip! This setup provides the perfect blend of performance, connectivity, and versatility, ideal for a wide range of real-time applications.

Key Features

STM32F4 Processor:

• High-Performance Core: Powered by an ARM Cortex-M4 core running at 180MHz, the STM32F4 delivers smooth responsiveness and lightning-fast data processing. It’s perfect for handling complex calculations and bringing your creations to life.
• Ample Memory: With up to 1MB of Flash memory and 192KB of SRAM, you’ll have plenty of space for your code and data, ensuring efficient operation even for demanding applications.
• Rich Peripherals: Includes multiple I/O pins, ADC channels, DAC outputs, UART, SPI, and I2C buses, providing flexibility to connect a wide range of sensors and accessories.

ESP32 Wi-Fi Module:

• Dual-Core Processor: The ESP32 features dual-core processing power, enhancing performance and enabling multitasking capabilities.
• Dual-Band Support: Operating on both 2.4GHz and 5GHz bands, the ESP32 ensures stable and fast wireless communication with high data rates.
• Bluetooth Integration: Includes Bluetooth Low Energy (BLE), adding versatility and enabling seamless connectivity with other BLE devices.

Versatile and User-Friendly

The integrated STM32F4 and ESP32 module is designed for both ease of use and advanced applications:

• Compact Form Factor: The small size of the module makes it suitable for space-constrained projects without sacrificing performance.
• Low Power Consumption: Optimized for energy efficiency, ideal for battery-operated devices, ensuring longer operational times.
• Extensive Documentation: Comes with comprehensive documentation and community support, simplifying the integration process and enabling you to quickly get your project up and running.

Ideal Applications

Home Automation: Perfect for creating smart home devices that require reliable and high-speed wireless communication. IoT Projects: Essential for developing connected devices that can communicate over the internet, providing real-time data and control. Wearable Technology: Suitable for compact devices like fitness trackers and smartwatches that need efficient and robust wireless communication. Industrial Automation: Ideal for monitoring and controlling industrial systems, ensuring reliable and secure wireless communication.

Why Choose the STM32F4 and ESP32 Integration?

Performance: The powerful combination of STM32F4’s high-speed processing and ESP32’s robust wireless capabilities ensures top-notch performance for your projects. Flexibility: With a wide range of peripherals and connectivity options, this module can handle various applications and use cases. Ease of Use: Designed for both beginners and experienced users, offering an easy-to-use platform with extensive support and resources.

Whether you’re developing a new IoT device, upgrading an existing system, or embarking on a new innovation, the integrated STM32F4 and ESP32 module provides the perfect solution for your wireless communication needs. Explore our selection today and power your next creation with this dynamic duo!

Core:

• ARM Cortex-M4 core
• Clock speed: Up to 180MHz

Memory:

• Flash memory: Up to 1MB
• SRAM: Up to 192KB

Peripherals:

• ADC: Up to 24 channels (12-bit)
• DAC: Up to 2 channels (12-bit)
• UART: Up to 8 ports
• SPI: Up to 6 ports
• I2C: Up to 3 buses
• GPIO: Extensive I/O capabilities with multiple general-purpose pins

Timers:

• Advanced control timers
• General-purpose timers
• Basic timers
• Watchdog timers
• Real-time clock (RTC)

Communication Interfaces:

• USB 2.0 Full-speed/High-speed
• CAN bus
• Ethernet MAC
• SDIO
• QSPI
• I2S
